AC1000
Semiautomatic machine for Small Batches, Produkt development and Qualitycontrol

DMC -4
Semi-automatic counting machine, of up to medium output, also available in automated versions

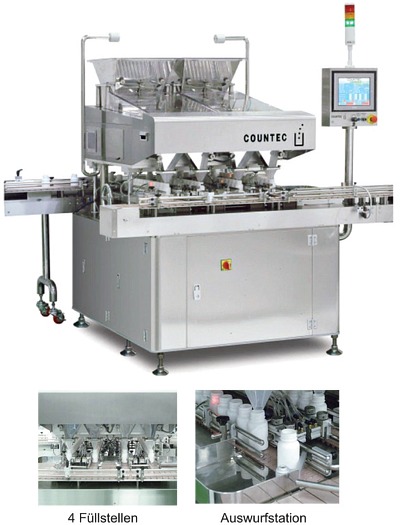

DMC-60 und DMC-120
Fully automatic tablet-counting- and Filling machines für medium and high output

DMC-120T und DMC-120T x 2
Fully automatic highspeed tablet-counting machines

COVISS®
Inspection System for tablet and capsule counting machines to detect shape- and colour deviations and broken tablets

COUNTEC tablet and capsule counters with tare/gross-weighsystem;
Models DMC-60S, T & DMC-120
can be equipped with a tare/gross weighsystem

DMC-200
High speed tablet and capsule counting machine
Outputs up to 200bpm

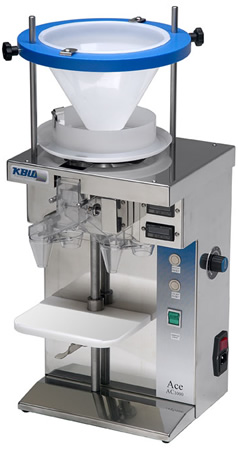

Tablet and capsule counting machine AC 1000
Bench top tablet counting equipment

Operation

Tablets or capsules are placed in the hopper. The vibratory scroll feeder aligns the product before it passes through the counting head. When the product count is reached, a flap mechanism diverts the tablet flow into the next container.

Benefits

• Accurate dispensing
• Excellent repeatability
• Simple operation with fast product change
• Change parts for tablet size
• Removable contact parts
• Digitally controlled count adjustment
• RS 232 Port

Features

• Counts batches 1 to 9,999
• Handles most shapes tablets & capsules
• Maximum tablet diameter 16mm
• Adjustable Vibrator speed control
• Advanced GMP design
• FDA approved contact part materials
• Ergonomic design
• Single phase supply
• Lightweight & portable

Specifications

Machine dimensions: 36 x 32 x 69H cm
Gross weight: 36 kg Nett Weight 21 kg
Voltage: 110/120v 60Hz or 220/240v 50Hz 1Ph, Power: 200w
Case dimensions: 41 x 31 x 79H cm

Options

• RS 232 Communication / Management info.
• Validation support documentation

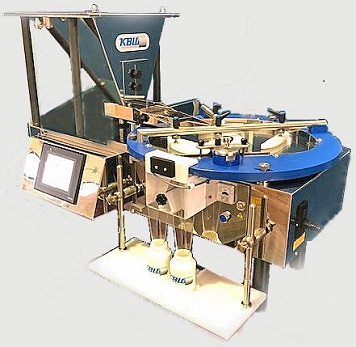

Tablet and capsule counting machineAC 2000
Bench Top tablet counting equipment

Benefits

• Accurate dispensing
• Excellent repeatability
• Simple operation with fast product changeover
• Change parts to suit different sizes shapes of tablets / capsules or soft gels are included
• Removable contact parts
• Digitally controlled count adjustment

Options

• Validation support pack
• Automation kit available

Features

• Counts batches 1 to 9,999+
• Advanced GMP design
• FDA approved contact part materials
• Ergonomic design
• Dust and chip removal
• Dust extraction points
• Automation kit available
• Max tablet diameter 25 mm

Specifications

Machine dimensions: 978 x 606 x 740 mm
Gross weight: 110 Kg Nett weight: 90 Kg
Voltage: 110/120v 60Hz or 220/240-50Hz 1Ph Power: 500W
Air: 3-6 bar (only if required)

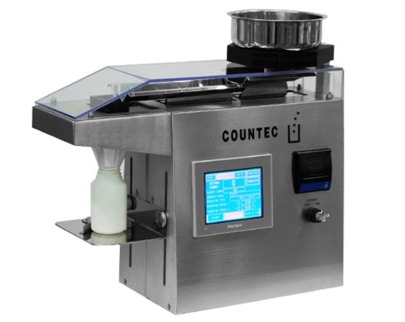

Tablet And CapsuleCounting Machine COUNTEC DMC-CQ2

An accurate and compact counting machine for quality control purposes.

Features:

• Vibratory product feed.
• Opto-Electronical Registratration of the product.
• Integrated small thermo printer to report the counting results.
• Touch-Screen.
• Adjustable container platform.
• All product contact parts made in stainless steel 316 and food approved plastic, easy disassembly for cleaning with a minimum of required tools.

Power supply: 230V, 50Hz, ca. 2A
Weight: approx.. 40 Kg
Dimensions: approx: 200 x 600 x 600mm W x H x L)

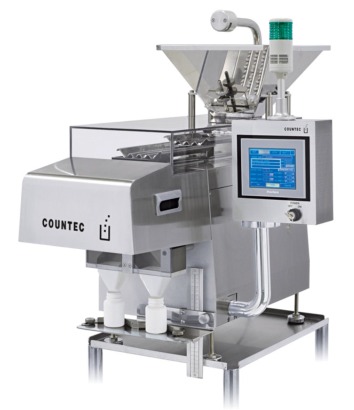

Tablet And CapsuleCounting And Filling MachineCOUNTEC DMC-4

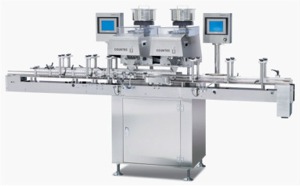

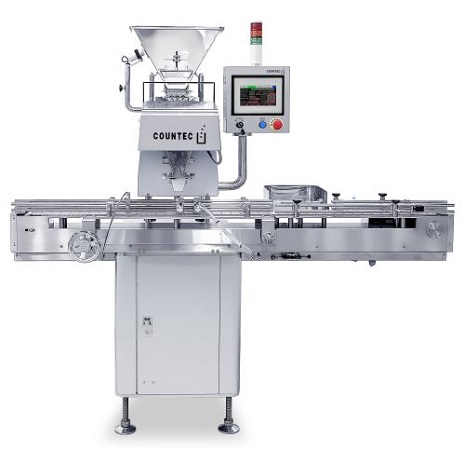

An accurate and compact Counting and filling machine for tablets and capsules of almost all shapes.Available as a bench top version but also fully automated with integrated conveyor and motorised height adjustment.

Features:

• Accurate and highly efficient

• Counts almots all shapes of tablets and capsules

• Counts from 1 - 10.000 pieces

• Password-Mode

• Program-memory

• Variable feeding-speed

• Detection of double tablets and small tablet chips

• Detects whether product too close together with automatic correction of the feeding speed

• Touch Screen Operation
• Available in automated versions


Outputs:

Tablets: up 2.000/min
Capsules: up to 1.500/min

Power Supply: 230V, 50Hz, 1Ph., 5A
Length: 650mm
Depth: 850mm
Height: 800mm
Weight: approx. 80Kgs (bench top version), approx. 350 Kgs (DMC-4auto)
Dimensions: 650 x 800 x 850mm (B x H x T) (bench top version)

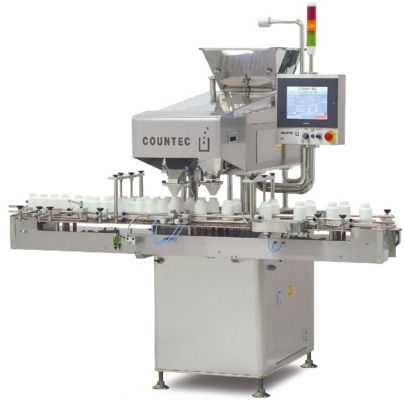

• Electronic counting system.
• Outputs: DMC-60S up to 6.000 tablets/min, DMC-120 up to 12.000 tablets/min (Diameter 10mm ). Maximum possible container handling speed: 60 containers/min (DMC 60 S), 120 containers/min (DMC-60T and DMC-120).
• Counting range: 1- 32000 pieces.
• No change parts required.
• GMP-worthy design, product contact parts made in appropriate materials.
• Easy disassembly for cleaning, without tools.
• Electrical adjustment of the counting head to suit different container heights.
• Touch-screen operation.
• Program-memory
• Integrated sanitary conveyor system.
• Self-diagnosis system and display of faults and alarms.
• Container infeed and backup sensors on the conveyor.
• Several dust extraction points.
• Dimensions:
  • DMC60: 2,5 - 3,0m x 1,4 x 1,8m (LxDxH)
  • DMC120: 3,0 x 1,4 x 1,8m (LxDxH)

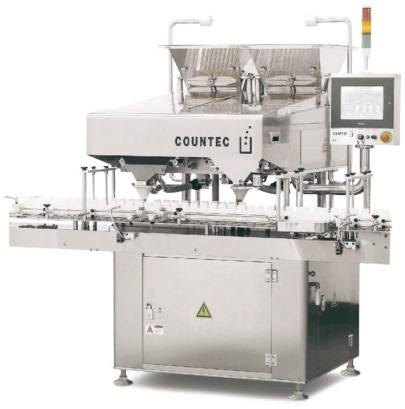

• Electronic counting system.
• Outputs: up to 12.000 tablets/min (Diameter 10mm ). Maximum possible container handling speed: 120 containers/min.
• Counting range: 1- 32000 pieces.
• No change parts required.
• GMP-worthy design, product contact parts made in appropriate materials.
• Easy change over to another bottle size by means of a central adjustment of the conveyor guiderail system.
• Easy disassembly for cleaning, without tools.
• electrical adjustment of the counting head to suit different container heights.
• Touch-screen operation.
• Program-memory
• Integrated sanitary conveyor system.
• Self-diagnosis system and display of faults and alarms.
• Container infeed and backup sensors on the conveyor.
• Several dustextraction points.
• Dimensions: 3,5 x 1,5 x 1,9 m (L x W x H)

COVISS® is a high speed online inspection-system developed by COUNTEC for tablet and capsule counting and filling machines. It makes sure, that each tablet or capsule is con-trolled before being counted. The system checks for deviations in colour and shape and is able to detect broken tablets and fragments. New machines can be equipped with that System, but it can also be retrofit to existing ones. Compared to other manufacturer's systems the COVISS® is very compact and the system is easily set by means of it's unique Auto-Teaching Feature.

Depending on the running speed, the system can detect:

Visual Inspektion:
By means of the Auto Teaching-feature the setting only takes approx. 5 minutes, the data collection is automatic.

• Analysis - Calibration and determination of the acceptance criteria in respect of colour, shape and dimension of the tablets or capsules during the Auto-Teaching process.

• Registration- Each tablet/capsule is being. registered.

• Inspection - Each tablet/capsule is being assessed in respect of dimensions and coloration.

• Rejection - based on the result of the inspection it will be decided, whether a product needs to be rejected.

The system is able to create a report.

Rejection:
COVISS® offers the alternative of stopping the machine to allow the operator to remove the object in question manually. For simplification, the COVISS® is automatically lifted upwards. An acoustic alarm signal is created and also a message on the display. Alternatively, the machine automatically rejects the bottle, which contains the faulty object.

Hardware Specifikation
Camera:

Processor:
Intel i7/ 8GM Ram / 250GB SSD

Deviation range
(depending on the product characteristics)
Length up to 5%
Width up to10%
Colour deviation (depending on the colouration of the tablets , dark clour is critical due to the lack of contrast) up to10%

To be seen on YouTube: https://www.youtube.com/watch?v=NdNKCN-c748

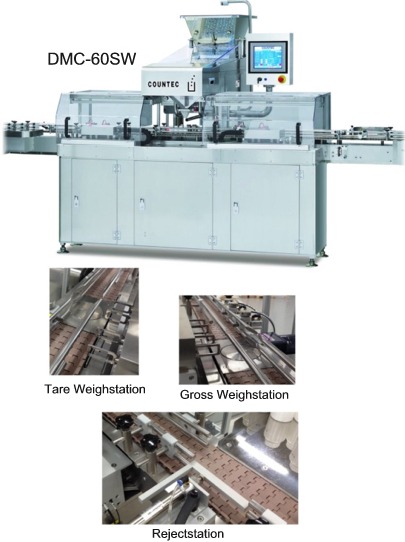

The tablet and capsule counting machines DMC-60 und DMC-120 can be supplied with a Tare/Gross-Weigh system. Prior to the filling, each container is weighed to determine the tare weight. After filling, the container is weighed again in order to determine the gross weight. Then the system calculates the net weight and compares the result with the target weight. If the result lies outside the set acceptance tresholds of the target weight, the bottle will be rejected.

The design of the weigh stations is very compact. High glass weigh cells made by Wipotec are being used. A smooth servo driven transfer moves the onto the weigh cells.

Dependend on the specifications there are are weigh cells for 3 different ranges available:

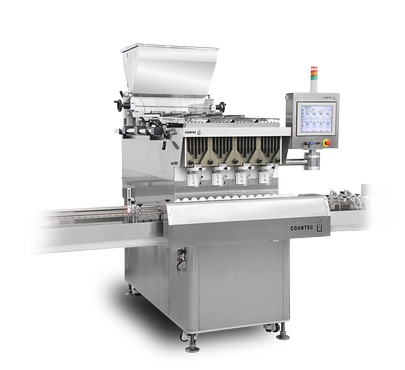

DMC-200
A very precise high speed counting and filling machine with 4 independently operating feeding and counting modules, each comprising 3 linear vibrators with 4 feeding lanes.

The machine is equipped with the latest infrared sensor electronics and operates with a 2 step reservoir system.

A scrollsystem ensures a rapid and smooth transfer of the empty bottles to the filling stations and of the filled bottles away from it.

Toolless dismantling of all parts in contact with the product for cleaning and changeover and equally quick assembly is another advantage.

The machinedesign is very compact and allows a space saving positioning of the DMC-200 .

Sepecifications:

• Counting speed up to 20.000tablets/min (tablets with10mm diameter) depending on shape and characteristics.
• Almost free of change parts.
• Very easily changeover by means of central adjustments.
• GMP-worthy design , contact parts made in pharmaceutically approved materials.
• Motor driven height adjustment.
• Touchscreen operation
• Program-memory
• Integrated conveyor system.
• Diagnosis of machine errors and Display on the screen.
• No Bottle- and Backup- Sensorsystems.
• Multiple dust extraction points. .
• Container diameters: 30 - 100mm.
• Container heights: 40 - 200mm.
• Dimensions: 4m (L) x 2,1m (T) x 2,1m (H), incl. Conveyor
• Weight, net: approx. 1200Kg
