An excerpt of Travtec's manufacturing program, for more information pls. look up Travtec's website

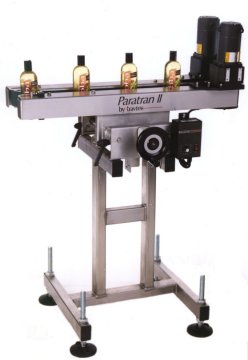

	PARATRAN II A system to transfer containers from one conveyor to another, giving free access from below. To be used for: Bottom Ink-Jet coding Bottom Laser-Coding Inspection Taking containers out of pucks Features: To be positioned between 2 conveyors Also for transferring containers from a conveyor to a turntable Stainless steel construction Height adjustable foot spindles Variable speed Option: fixation for Ink-Jet printing head Also available: Mobile Paratran version for bottom labelling of containers (see below))
PARATRAN Mobile Version, Inverted A system to transfer containers from one conveyor to another, giving free access from below. To be used for: Bottom labeling of containers Bottom IInk-Jet coding Bottom Laser-Coding Inspection Taking containers out of pucks Features: To be positioned between 2 conveyors Also for transferring containers from a conveyor to a turntable Stainless steel construction Height adjustable foot spindles Variable speed Option: Fixation for Ink-Jet printing head or bottom label dispenser

	DIVERTER The Travtec Basecoding Diverter II is designed for use with Inkjet Printers, Laser Coders, Label Applicators and Vision Imaging Systems. Used where access is required to the base of Cans, Bottles, Jars & Aerosols for Coding, Marking, Label Application or Inspection, whilst being transported along a conveyor. The Diverter II is used where it is inconvenient to create a gap in the line, and is easily attached to most conveyors up to 150mm wide. Adjustment between container sizes takes only seconds, and the twin belt drive ensures positive container control and guidance.



CAP PRESS A simple unit to apply press caps (with inner or outer seat ) on containers. May be mounted to any existing conveyor: Method: The caps are applied manually and will be firmly pressed on, while passing the Cap Press. Features Height-adjustable support to suit the height of the containers to be capped.. Adjusatble angle to suit the caps to be applied.V Speed adjustable belt drive to sysnchronise with the conveyor speed.. Available in different widths. Power Supply: 220/240VAC, 50/60Hz, 1 Ph, ca. 100W Dimensions: Length approx. 550mm, overall height approx. 600mm Weight:approx.. 20Kgs	s


	PHARMACARTON II - One Compact Unit - Code, Verify, Reject The Pharmacarton Coding Station is designed for in-line, high resolution digital printing of lot, expiry and barcodes for pharmaceutical and medical cartons. The new design overcomes the problem of printing high density barcodes and 2D codes on line by totally controlling the carton during the print and vision process. The turnkey system combines a precision multi-belt conveyor with a synchronised top hold down belt and is integrated with any small character Inkjet Printer, and an OCV optical character verification system. A reject station with pack rejected confirmation compliments the total design. This fully integrated module provides pharmaceutical and medical manufacturers with an easy to operate, flexible system to meet a variety of coding requirements. The station is easily integrated into existing packaging lines using minimum space, and is adjustable to suite a range of carton sizes.
