An excerpt of the manufacturing program of Countec

DMC-CQ2 Semiautomatic Machines for Qualitycontrol	DMC -4 Semi-Automatic Counting Machine, of up to medium output, also available in automated versions
DMC 60 und DMC-120 Fully automatic Tablet-Counting- and Filling Machines für medium and high output.	DMC120T and DMC200 Fullyautomatic highspeed tablet-counting machine
COUNTEC CT-200 Fully automatic high speed screw capping machine	CT-OC-120 Fully automatic press capping machine
CT-SG-120 Inserting Machine for Silicagel-Capsules	CT-CO-120 Cotton Wool Inserting Machine
CT-OC-120 Fully automatic press capping machine
CT -UA 200 Fully automatic Bottle Unscrambling Machine


Please Scroll-Down to the Overview





























Tablet-Counting Machine For The Quality-Control DMC-CQ2
	Tablet-Counting Machine COUNTEC DMC-CQ2 An accurate and compact Tablet-Counting machine for quality control purposes. Features: Vibratory product feed. Opto-Electroical Registratration of the product. Integrated small thermo printer to document the counting results. Touch-Screen operated. Adjustable container platform. All product contact parts made in stainless steel 316 and food approved plastic, easy disassembly for cleaning with a minimum of required tools. Powersupply: 230V, 50Hz, ca. 2A Weight: approx.. 40 Kg Dimensions: approx: 200 x 600 x 600mm W x H x L)

DMC-4
Automation with 2 DMC-4	Tablet Counting And Filling MachineCOUNTEC DMC-4 An accurate and compact Counting and fillingmachine for tablets and capsules of almost all shapes. Features: Accurate and highly efficient Counts almots all shapes of tablets and capsules Counts from 1 - 10.000 pieces Password-Mode Programmenu Variable feeding-speed Detection of double tablets and small tablet chips Detects whether product too close together with automatc correction of the feeding speed 5 l Hopper Touch Screen Operation Available in automated versions Outputs: Tablets: up 2.000/min Capsules: up to 1.500/min Further Data Power Supply: 230V, 50Hz, 1Ph., 5A Length: 650mm Depth: 850mm Height: 800mm Weight: approx. 70kg


DMC 60 and DMC-120
DMC-60T DMC-120	Fully automatic tablet counting and filling machinesCOUNTEC DMC-60 und DMC-120 Latest technology fully automatic electronic counting systems suitable for tablets and capsules, round, oval and oblong shaped. Product transport by 12 (DMC60) or 24 (DMC-120) lane vibratory feeding system. The DMC 60 is also available as the version DMC-60Twith a double lane extra wide conveyor and 2 funnels, giving the advantage of a better use of the machine's efficiency on small counts. Some of the features: Electronic counting system. Outputs: DMC-60S up to 6.000 tablets/min, DMC-120 up to 12.000 tablets/min (Diameter 10mm ). Maximum possible container handling speed: 60 containers/min (DMC 60 S), 120 containers/min (DMC-60T and DMC-120). Counting range: 1- 32000 pieces. No change parts required. GMP-worthy design, product contact parts made in appropriate materials. easy disassembly for cleaning, without tools. electrical adjustment of the counting head to suit different container heights. Touch-screnn operation. Program memory Integrated sanitary conveyor system. Self-diagnosis system and display of faults and alarms. Container infeed and backup sensors on the conveyor. Several dustextraction points. Dimensions: DMC60: 2,5 - 3,0m x 1,4 x 1,8m (LxDxH) DMC120: 3,0 x 1,4 x 1,8m (LxDxH) Also available is the model DMC-120T with a 4 track conveyor and 4 filling funnels for outputs up to 160/min and as a twin version DMC-200 with 8 track conveyoring and 8 filling funnels.

COUNTEC DMC-120T
	Fully automatic tablet counting and filling machines Latest technology fully automatic electronic counting systems suitable for tablets and capsules, round, oval and oblong shaped. Product transport by 24 lane vibratory feeding system. The DMC 120T is equipped with a 4 lane conveyor system crossfeeding the bottles from the back to the front of the machine, filling 4 containers idependently, giving the advantage of the best use of the machine's counting abilities. A further advantage is the space saving, cmpact design. Some of the features: Electronic counting system. Outputs: up to 12.000 tablets/min (Diameter 10mm ). Maximum possible container handling speed: 120 containers/min. Counting range: 1- 32000 pieces. No change parts required. GMP-worthy design, product contact parts made in appropriate materials. easy cahnge over to another bottle size by means of a central adjustment of the conveyor guiderail system. easy disassembly for cleaning, without tools. electrical adjustment of the counting head to suit different container heights. Touch-screnn operation. Program memory Integrated sanitary conveyor system. Self-diagnosis system and display of faults and alarms. Container infeed and backup sensors on the conveyor. Several dustextraction points. Dimensions: 1.5 x 1,4 x 1,8m (L x W x H) Also available is the model DMC-200 combining DMC-120's for outputs up to 200 bottles/min.

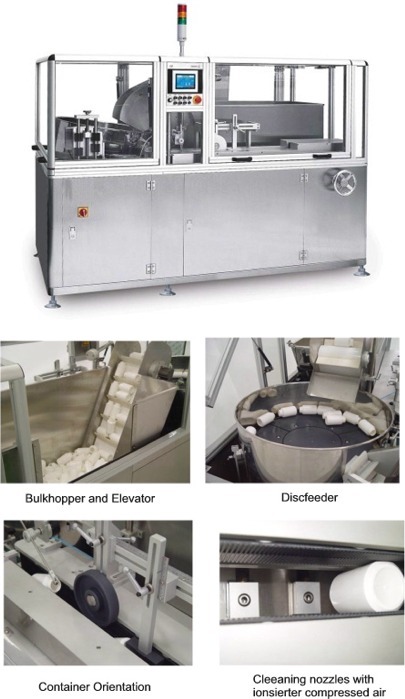

CT-UA 200 Fully automatic Bottle Unscrambling Machine
	CT-UA 200 Fully automatic cGMP bottle unscrambling machine Gentle handling of containers Quick and easy changeover without tools. Fully interlocked guarding Designed to feed random bottles in an upright position on its out feed conveyor after being cleaned by de-ionzing air with vacuum. Bottles loaded in extra big bulk hopper are supplied to the sorter via a bottle elevator. Bottles are aligned around the sorter dise. While a conveyor and side belt mechanism transfers the bottles from the sorter to the aligning unit, bottles are inverted and cleaned by de-ionizing air with vacuum. The bottles are turned into an upright position for discharge. Standard features Container diameter : 20-120 mm Container height : 50-220 mm Hopper volume : 385 liter Power : 0.65 kWh Air consumption : 300 liters/minute Output : 200 containers/minute Dimension : 2,200(L) x 1,400(W) x 1,800(H)mm Weight : Approx. 950 kg

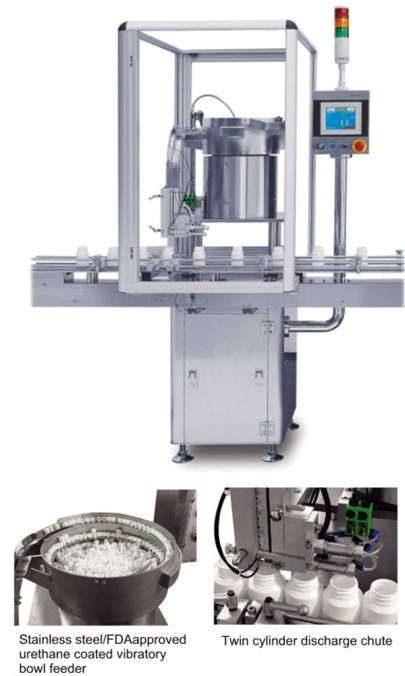

CT-SG-120 Inserting Machine for Silicagel-Capsules
	CT-CG-120 Inserting Machine for Silicagel-Capsules GMP-worthy machine to insert silicagel-capsules into bottles. The silicagel-capsules are orientated and transferred into the feeding chute. An upper an a lower sensor verify the that there are capsules ready to be fed into the wailting bottle, which has been arrested by two pneumatic bottle gating stoppers underneath the outfeed of the chute. By means of 2 pneumatic stoppers a number of 1 - 5 silicagels are realeased to fall into the bottle, verified by another sensor directly at the outfeed. Afterwards the bottle is released and replaced by another waiting to be fed with silicagel-capsules. An infeed sensor mounted the the conveyor ensures that silicagels are only fed, when a bottle is positioned correctly underneath the chute, another sensors mounted to the outfeed checks for bottle back-up jams. Output: up to 120 bottles/min Bottle sizes: Diameters 20 -120mm, Height 50- 220mm Silicagel Capsules: up to 20mm Diameter Vibratory Feeder: Volume 45l Anschlusswerte: 230V, 1Ph, 50/60Hz, 7000W Compressed Air: 5 bar, 15l/min Dimensions: 1200 x 8000 x 1800mm (LxTxH) Weight: 250Kg

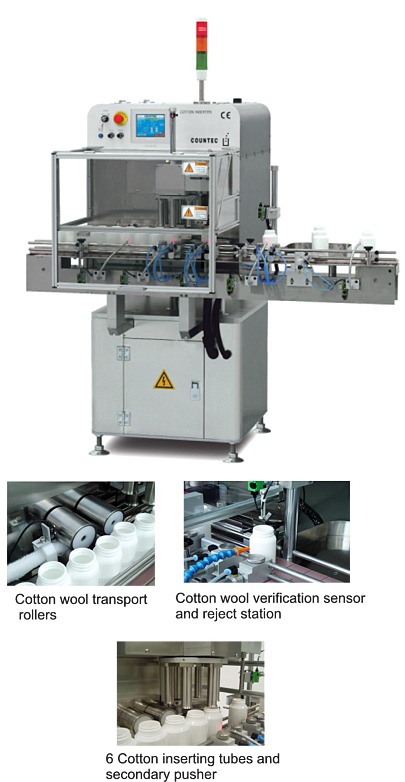

CT-CO-120 Cotton Wool Inserting Machine
	Cotton Wool Inserter Model CT-CO-120 Fully automatic cGMP machine designed to work with rope fed cotton, rayon and polyester. The length can be set up to 200 mm and the number of cotton pieces inside one bottle set up to 5 pieces, easily adjusted on the touch screen. The operation is controlled by a programmable logic controller so eliminating machine mis-adjustments. The second pusher pushes cotton into the bottle for deep insertion. The length of cotton to be inserted can be set by numerical value on the touch screen. Two pairs of rollers feed the material and by the stop / start action tear the rope to its pre-set length. Servo drive operation Six station swivel cotton insert tubes. One tube inserts cotton into bottle while other loads a piece of cotton in sequence. Deep insertion:After the first pusher inserts cotton from the tube into the bottle, the second pusher pushes the cotton further for deep insertion. Single and double push selectable. Cotton inserted verification and reject No cotton in bottle sensor ensures bottles are rejected to reject tray. SPECIFICATION: Container diameter : 20-120mm Container height: 50-220mm Cotton wool length: 70-200mm Power: 220/230V, 50/60Hz, 0,36kWh Air consumption: 6 bars, 150 liters/minute Output: 120 containers/minute Multi insertion: Up to 5 cotton pieces/bottle Dimension: 1 250 (L) x 965 (W) x 1 460 (H)mm Weight: 200 kg Also availabale: Version CT-CO-200 for 200/min Output

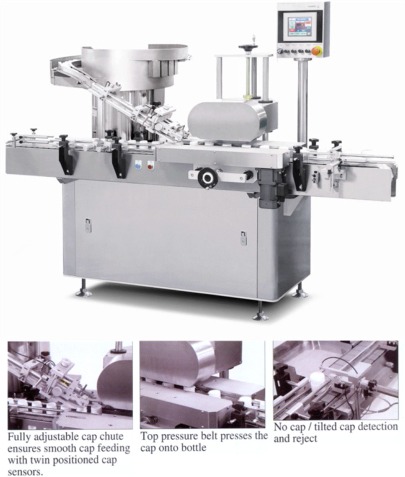

CT-OC-120 Fully automatic press capping machine
	CT-OC-120 Fully automatic press capping machine Caps are loaded into a vibratory bowl feeder, aligned and fed to the chute escapement. As containers pass along the conveyor, they are gripped by adjustable side belts. The cap is tripped onto the container before passing beneath an adjustable top pressure belt that evenly presses the cap down. Cap presence detecting system reject the bottle if no cap or tilted cap option. Consisting of: Vibratory bowl feeder made of stainless steel 316 L Fully adjustable cap chute and escapement Differential top roller pressure belt No cap / tilted cap detection and reject (option) SPECIFICATION: Container diameter: 20 - 20mm Container height: 50 - 220mm Cap diameter: 30 - 70mm Cap height: 10 - 25mm Power: 220/240V, 50/60Hz, 3,25 kWh Air consumption: 6- 8bar, 10l/min Output: upt to 120containers/min Cap hopper capacity: 28 litres Dimensions: 2,44 x 1,025 x 1,5m (L x W x H)

COUNTEC CT-200
	Fully automatic screw capping machine COUNTEC CT-200 A high speed capping machine with outputs up to 200bpm. 8 cap chucks, cap- orientation, feed and transfer, electronic Torque adjustment and control, Reject Station, , Operation via Touch screen, Errror-self diangnosifunction and error messages diplayed, Conveyor Working range: Cap Ø: 25-100mm Container heights 50 - 220mm Also available as model CT-RC-120 with 4 cap chuckstfor an output of 120 bpm.
